CSR SERIES
Description

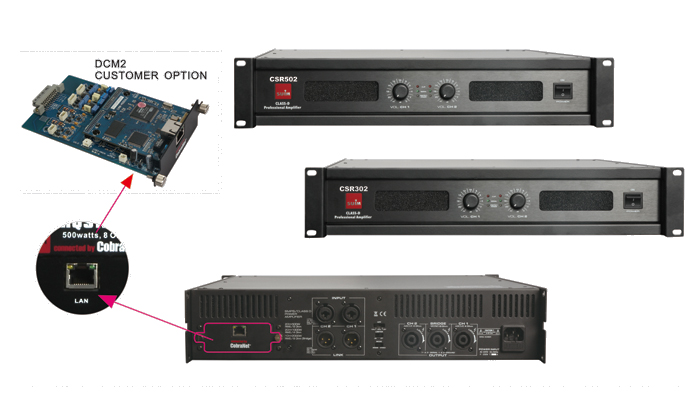

CSR302/CSR304/CSR502/CSR802/CSR1202 are mounting SMPS power supply and D-Class digital power amps.Upto 2,800watts RMS real power, They are covering small PA to big sound system,also very light weight offer a touring team happy work condition with rock stable operation.For the professional users LP series are surely answer !
Technical data
|
DIGITAL AMPLIFER |
CSR302 / CSR302C |
CSR502 / CSR502C |
|
Output Power(per CH,RMS) |
300W x 2CH, 8ohm |
500W x 2CH, 8ohm |
|
4ohm |
600W x 2CH |
1000W x 2CH |
|
2ohm |
1000W x 2CH |
1200W x 2CH |
|
8ohm Bridge |
1200W |
1500W |
|
Freq.Response(±3dB) |
15Hz~20KHz±1dB |
15Hz~20KHz±1dB |
|
T.H.D |
<0.01% |
<0.01% |
|
Control |
Bridge On/Off |
Bridge On/Off |
|
Low Pass Select 30Hz,70Hz |
|
|
|
Limiter On/Off |
|
|
|
Protections |
Over Temp,DC Offset,Short |
Over Temp,DC Offset,Short |
|
Power Input |
AC 110V or 220V,50/60Hz |
AC 110V or 220V,50/60Hz |
|
Dimension (WxHxD) |
480x88x470mm |
480x88x470mm |
|
Weight |
8Kg |
10Kg |
|
DIGITAL AMPLIFER |
CSR802 / CSR802C |
CSR1202 / CSR1202C |
|
Output Power(per CH,RMS) |
800W x 2CH, 8ohm |
1200W x 2CH, 8ohm |
|
4ohm |
1600W x 2CH |
2400W x 2CH |
|
2ohm |
1800W x 2CH |
/ |
|
8ohm Bridge |
2000W |
2800W |
|
Freq.Response(±3dB) |
15Hz~20KHz±1dB |
15Hz~20KHz±1dB |
|
T.H.D |
<0.01% |
<0.01% |
|
Control |
Bridge On/Off |
|
|
Low Pass Select 30Hz,70Hz |
|
|
|
Limiter On/Off |
|
|
|
Protections |
Over Temp,DC Offset,Short |
Over Temp,DC Offset,Short |
|
Power Input |
AC 110V or 220V,50/60Hz |
AC 110V or 220V,50/60Hz |
|
Dimension (WxHxD) |
480x88x470mm |
480x88x470mm |
|
Weight |
10Kg |
13Kg |
|
DIGITAL AMPLIFER |
CSR304 |
|
Output Power(per CH,RMS) |
300W x 4CH, 8ohm |
|
4ohm |
600W x 4CH |
|
2ohm |
/ |
|
8ohm Bridge |
1200W x 4CH |
|
Freq.Response(±3dB) |
15Hz~20KHz±1dB |
|
T.H.D |
<0.01% |
|
Control |
Bridge On/Off |
|
Low Pass Select 30Hz,70Hz |
|
|
Limiter On/Off |
|
|
Protections |
Over Temp,DC Offset,Short |
|
Power Input |
AC 110V or 220V,50/60Hz |
|
Dimension (WxHxD) |
480x88x470mm |
|
Weight |
11Kg |
Technical data
|
Output Power (1kHZ, 0.01% THD+N) |

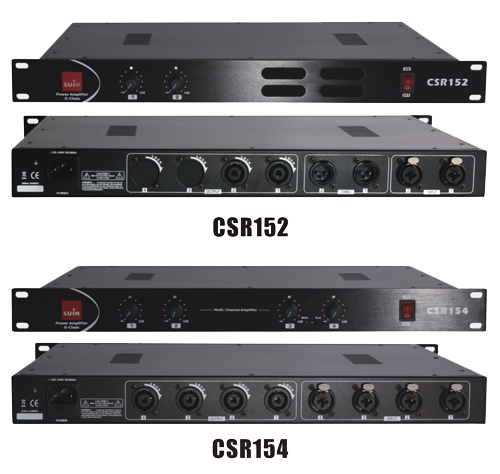

CSR152 |
CSR154 |
|
RMS into 8 Ohm |
150 W X 2CH |
150 W X 4CH |
|
RMS into 4 Ohm |
250 W X 2CH |
250 W X 4CH |
|
Frequency Response(0/-1dB, 1W/8Ω) |
20-20kHz |
20-20kHz |
|
THD+N (at 8Ω/1kHz and -dB under clip) |
<0.01% |
<0.01% |
|
Input Sensitivity (8 ohm stereo) |
0 dB / 0.755V |
0 dB / 0.755V |
|
Input Impedance (bal/unbal) |
>20K / >10K |
>20K / >10K |
|
S/N(dB) |
>60 dB |
>60 dB |
|
Connector Input |
2x XLR / 1/4\” |
4x XLR / 1/4\” |
|
Connector Output |
Thru: 2xXLR/male; 2xSpeakon, 1+/1-, NL4 |
4xSpeakon, 1+/1-, NL4 |
|
Operating Voltage |
~110-220V, 50/60Hz |
~110-220V, 50/60Hz |
|
Dimension (WxHxD) mm |
483×44.5x350mm |
483×44.5x350mm |
|
Net Weight (kg) |
3 |
4.5 |
