DIGITAL SNAKE CABLE
Description
Technical data
| Digital Snake Cable Receiver | DSC40R | DSC24R | DSC8R |
| Analog Input | 8CH(XLR jack) | 8CH(XLR jack) | / |
| Analog Output | 32CH(XLR jack) | 16CH(XLR jack) | 8CH(XLR jack) |
| Adjustable Analog input | +/-30dBV | +/-30dBV | / |
| Resolution | 16bit,20bit,24bit | 16bit,20bit,24bit | 16bit,20bit,24bit |
| Sample Rate | 48KHz | 48KHz | 48KHz |
| Dynamic Range | 110dBV | 110dBV | 110dBV |
| THD + Noise | <0.008%@1KHz,0dB Gain | <0.008%@1KHz,0dB Gain | <0.008%@1KHz,0dB Gain |
| Frequency Response | 20Hz~20KHz @ +/-0.5dBV | 20Hz~20KHz @ +/-0.5dBV | 20Hz~20KHz @ +/-0.5dBV |
| Noise Floor | <-100dBV | <-100dBV | <-100dBV |
| Cross Talk | <-100dBV | <-100dBV | <-100dBV |
| Indicate | Signal input LED,Phantom Power LED,Clipping LED,Power Switch LED | / | |
| Phantom power | DC 48V Switch on/off | DC 48V Switch on/off | / |
| Ethernet | CAT5E Cable Max 100M,100 Base-T RJ-45 Jack 2pork(Link&Cobranet) | ||
| Power | AC100V~240V 50Hz~60Hz | AC100V~240V 50Hz~60Hz | AC100V~240V 50Hz~60Hz |
| Dimension (WxHxD) | 480mmx220mmx330mm | 480mmx135mmx330mm | 480mmx44mmx330mm |
Technical data
| Digital Snake Cable Receiver/Transmitter | DSC4RT |
| Analog Input | 4CH(XLR jack) |
| Analog Output | 4CH(XLR jack) |
| Adjustable Analog input | +/-20dBV |
| Resolution | 16bit,20bit,24bit |
| Sample Rate | 48KHz |
| Dynamic Range | 110dBV |
| THD + Noise | <0.008%@1KHz,0dB Gain |
| Frequency Response | 20~20KHz @ +/-0.5dB |
| Noise Floor | <-100dBV |
| Cross Talk | <-100dBV |
| Ethernet | Cat5 Cable Max 100M,100Base-T RJ-45 jack |
| Power | DC14V |
| Dimension (WxHxD) | 480mmx44mmx200mm |
Technical data

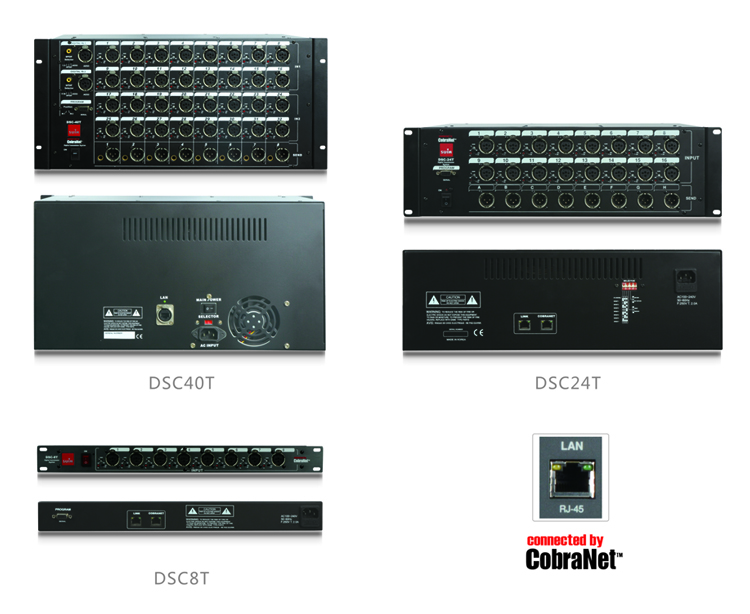

| Digital Snake Cable Transmitter | DSC40T | DSC24T | DSC8T |
| Analog Input | 32CH(XLR jack) | 16CH(XLR jack) | 8CH(XLR jack) |
| Analog Output | 8CH(XLR jack) | 8CH(XLR jack) | / |
| Adjustable Analog input | +/-30dBV | +/-30dBV | / |
| Resolution | 16bit,20bit,24bit | 16bit,20bit,24bit | 16bit,20bit,24bit |
| Sample Rate | 48KHz | 48KHz | 48KHz |
| Dynamic Range | 110dBV | 110dBV | 110dBV |
| THD + Noise | <0.008%@1KHz,0dB Gain | <0.008%@1KHz,0dB Gain | <0.008%@1KHz,0dB Gain |
| Frequency Response | 20Hz~20KHz @ +/-0.5dBV | 20Hz~20KHz @ +/-0.5dBV | 20Hz~20KHz @ +/-0.5dBV |
| Noise Floor | <-100dBV | <-100dBV | <-100dBV |
| Cross Talk | <-100dBV | <-100dBV | <-100dBV |
| Indicate | Signal input LED,Phantom Power LED,Clipping LED,Power Switch LED | ||
| Phantom power | DC 48V Switch on/off | DC 48V Switch on/off | / |
| Ethernet | CAT5E Cable Max 100M,100 Base-T RJ-45 Jack 2pork(Link&Cobranet) | ||
| Power | AC100V~240V 50Hz~60Hz | AC100V~240V 50Hz~60Hz | AC100V~240V 50Hz~60Hz |
| Dimension (WxHxD) | 480mmx220mmx330mm | 480mmx135mmx330mm | 480mmx44mmx330mm |
