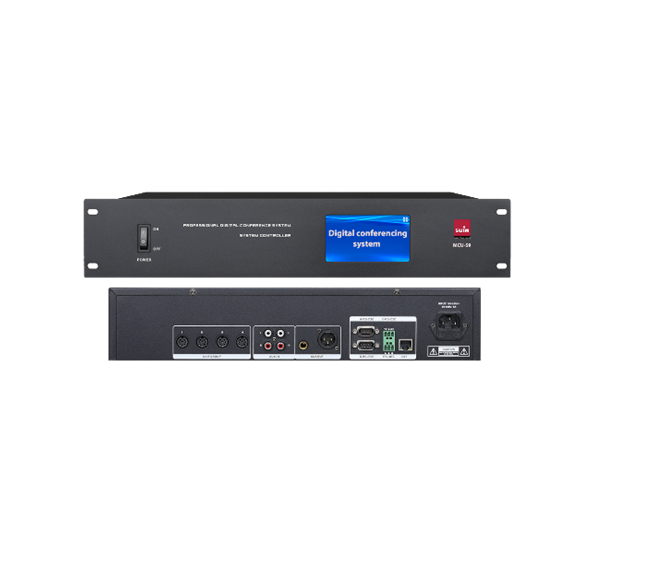

MCU-S9 – Central controller
- Utilizing DSP/DD0V digital transmission and processing technology and adhering to the latest international standards:
- Time-Distorted Multiplexing (TDM), 12-channel 32-bit PCM
- Aluminum alloy panel equipped with a 128×64 color LCD touchscreen for flexible use; system setup can be completed without a computer to improve debugging efficiency
- Connects up to 75 delegate microphones simultaneously and can be expanded to up to 600 microphones when connected with 8 auxiliary controllers
- Integrates conference discussion, video monitoring, electronic login, and voting/election functions (Yes, No, abstain)
- It has seven meeting modes: first-in, last-in, limited number, speech timer, voice-controlled start, chairman’s permission, and free discussion.
- The number of speakers simultaneously can be set to 1/2/3/4/5/6/8 (Maximum 2 chairpersons and 8 delegates)
- Maximum cable length: 50M from the central control unit to the last delegate microphone
- Applies high-fidelity lossless audio transmission technology, with an audio sampling frequency of 98KHz and a frequency response of 18Hz-34KHz;
- Uses an ID addressing method; the number of units can be customized to ensure a unique ID number, effectively avoiding duplicate ID conflicts;
- It has a hot-swappable function upon power-on, supporting automatic repair and quick localization of system errors without affecting the operation of other devices;
- Connects to online conferencing camera, checking, includes monitor speaker and 3.5mm headphone jack output
- Display language: English
- EQ Insert input/output connector: -10 dB*2, 10 kΩ, unbalanced, RCA jack
- Online conferencing system input/output connector: -10 dB*2, 10 kΩ, unbalanced, RCA jack
- Distortion: 0.5% or less
- Video input: 8 x 75 RCA
- Video output: 2 x 75 RCA
- Dynamic range: > 95 dB
- S/N: 93dB (1 KHz THD1%)
- Signal-to-noise ratio (SNR): >-50dB at rated output (unweighted filter)
- Total harmonic distortion (THD): <0.1%
- XLR input: -18 dBV (+6 dB / -18 dB)
- Maximum XLR input: +18 dBV
- XLR Output: -18 dBV (+8 / -24 dB)
- Maximum XLR Output: +20 dBV
- RCA Output: -30 dBV (+8 / -24 dB) 200Ω
- Maximum RCA Output: +8 dBV
- Connections to auxiliary central controllers: 10 units
- Audio Inputs: LINE-50 KΩ, DIN-50 KΩ
- MIC Input: -54 dB*2, 600 Ω, unbalanced, Ø 6.3mm jack (2P)
- MIC Input Sensitivity: 1.2 mV (+1/-3dB)
- Line Output: -10 dB*2, 12 kΩ, unbalanced, Ø 6.3mm jack (2P)
- Aux Input Sensitivity: 100mV (+1/-3dB)
- Input Impedance: 48 KΩ/ LINE-50 KΩ, DIN-50 KΩ / Balance: –300Ω/ Unbalance: -400Ω
- Output Impedance: 47 KΩ
- REC: -10 dB*2, 12 kΩ, unbalanced, RCA jack, Mono
- HEADPHONES: Ø 3.5mm jack (3P: Mono)
- USB Audio Input/Output: USB 2.0, Type-B port
- Chairman and Delegate Box Connection Ports: 8-Pin connector or optional RJ45 x 2 connectors depending on manufacturer
- Microphone Auto-Mute Setting Button: On/Off
- Customizable conferencing device volume settings for monitor speakers: – , +
- Headphone volume setting buttons: – , +
- Headphone Impedance: >32 Ohm and < 1 kOhm
- Headphone Output Power: 16.5 mW / 32 ohm
- Control options: RS-232
- Operation keys: Check connection, start recording, stop recording (Recording port: USB-A)
- Network I/F: 10BASE-T / 100BASE-TX (Automatic-Negotiation)
- Network connection port: RJ45 connector
- Setting lock key: ON/OFF
- Power supply: 100 to 240 VAC, 50/60 Hz (±10%)
- Power consumption: 60 W or less
- Current consumption: 1.9 A (100 VAC) to 1 A (240 VAC)
- Permissible temperature: 0 ℃ to +40 ℃
- Permissible humidity: 90 %RH or lower (non-condensing) (Cabinet)
- Dimensions: 56.5*43*16cm
- Weight: 4.8Kg
