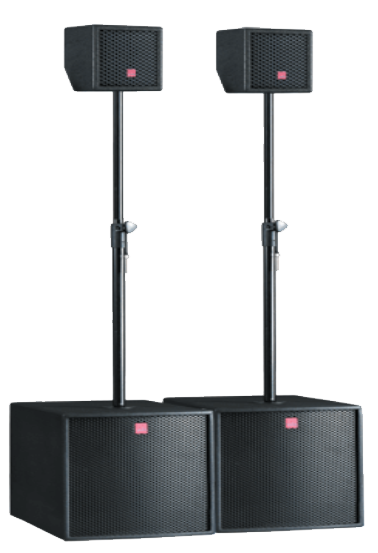

XT5 TOP |
| Type |
5″, two-way, coaxial |
| Frequency Range (-10dB) |
85 Hz ~18kHz |
| Coverage Pattern |
90°x 90°nominal |
| Sensitivity (1w/1m) (SPL) |
93 dB |
| Crossover Mode |
Passive |
| Crossover Frequency |
2.2 kHz |
| Drivers |
LF: 1 x 5″, HF: 1X1″ |
| Nominal Impedance |
8 Ohms |
| Dimensions (WxHxD) |
160x210x160mm |
| Suspension / Mounting |
2XM8 mounting points |
|
|
|
XT10 SUB |
| Type |
10″, Bass reflex type subwoofer |
| Frequency Range (-10dB) |
45Hz~200Hz |
| Sensitivity (1w/1m) (SPL) |
100 dB |
| Drivers |
1 x 10″, 2.5″ Voice Coil |
| Nominal Impedance |
8 Ohms |
| Dimensions (WxHxD) |
290x300x380mm |
| Amp. Mode Type |
Bi-Amp System |
| Output Power / Subwoofer |
300 watts |
| Output power / Mid-Hi (Top) |
80 watts |
| Line Connectors |
Line: XLR / Female |
| Output Connectors |
Line Loop Thru: XLR / Male; |
|
Speaker SPEAKON: NL4, 1+/1- |
| Operation Voltage |
115Volt or 230Volt |
