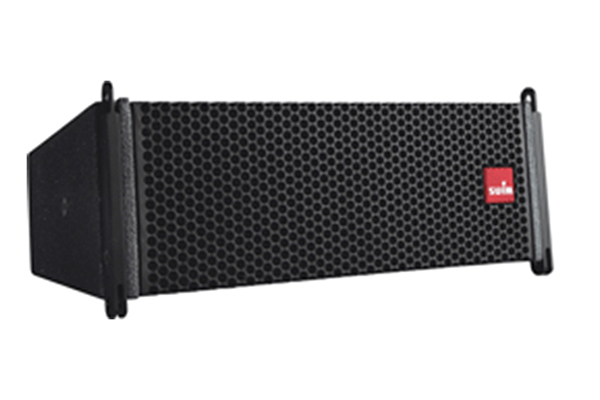

JEU24/JEU24A

Technical data

• Model: JEU24
• Type: 2×4”, 2-way Mid-High, Linearray Module
• Frequency Range (-10dB): 55Hz~22kHz
• Frequency Response (±3dB): 60Hz~22kHz
• Coverage Pattern: 100°V x 20°H nominal
• Sensitivity (1w/1m) (SPL): 101 dB
• Sensitivity Max. (SPL): 121dB
• Technology: Cardioid
• Power Rating (Continuous/Program/MAX): 300/600 watts
• Nominal Impedance: 16 Ohms
• Crossover Frequency: 3.5 kHz
• Drivers: LF: 2×4″/HF: 1X1″
• Appearance Finish: Water-borne (Green Eco), Sand texture painting (4 times)
• Dimensions (WxHxD): 394x165x360mm
• Package (WxHxD): 450x405x400mm
• Q’ty for package: 2 PCS / 1CTN
• Weight (Kg): 6

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

• Model: JEU24A
• Type: 2×4”, 2-way Mid-High, Linearray Module
• Frequency Range (-10dB): 55Hz~22kHz
• Frequency Response (±3dB): 60Hz~22kHz
• Coverage Pattern: 100°V x 20°H nominal
• Sensitivity (1w/1m) (SPL): 101 dB
• Sensitivity Max. (SPL): 121dB
• Technology: Cardioid
• Power Rating (Continuous/Program/MAX): 300/600 watts
• Nominal Impedance: 16 Ohms
• Crossover Frequency: 3.5 kHz
• Drivers: LF: 2×4″/HF: 1X1″
• Appearance Finish: Water-borne (Green Eco), Sand texture painting (4 times)
• Dimensions (WxHxD): 394x165x360mm
• Package (WxHxD): 450x405x400mm
• Q’ty for package: 2 PCS / 1CTN
• Weight (Kg): 6
• Technical Data For Amp
• Class D, DSP: Control Phase
• Output Power: 600W
• Frequency: +/-0.5dBV:20Hz-32KHz
• Input Impedance: 33K Ohms
• Input Sensitivity: Line: 0dBV
• Led Indicators: Signal, Overload
• Tated THD: <0.005%
• Line Connectors: Line: XLR
• Output Connectors: Line Loop thru: XLR/Male
• Speakon out: NLA, 1+/1-
• Operation Voltage: 115V or 230V
