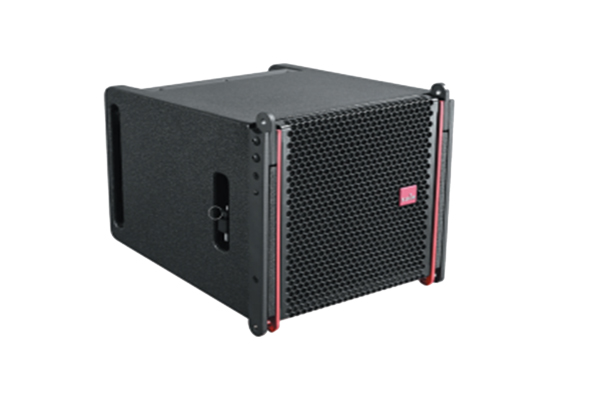

LA10CX/LA10CXA

Description

  • Model: LA10CX
  • Type: 10″ , 2-Way, Fullrange, Coaxial Type
  • Frequency Range (-10dB): 65Hz~20kHz
  • Frequency Response (±3dB): 75Hz~18kHz
  • Coverage Pattern: 120°H X25°V nominal
  • Sensitivity (1w/1m) (SPL): 98 dB
  • Sensitivity Max. (SPL): 125 dB
  • Power Rating (Continuous/Program): 300 / 600/ 1200 watts
  • Nominal Impedance: 8 Ohms
  • Crossover Frequency: 3.2 kHz
  • Drivers: HF: 1×1.5″/SUIM, LF: 1×10″/SUIM
  • Enclosure: 15mm Plywood
  • Appearance Finish: Polyurea Coating
  • Dimensions (W×H×D): 320x345x385mm
  • Package(W×H×D): 370X400X430mm
  • Weight (Kg): 18
  • Model: LA10CXA
  • Type: 10″ , 2-Way, Fullrange, Coaxial Type
  • Frequency Range (-10dB): 65Hz~20kHz
  • Frequency Response (±3dB): 75Hz~18kHz
  • Coverage Pattern: 120°H X25°V nominal
  • Sensitivity (1w/1m) (SPL): 98 dB
  • Sensitivity Max. (SPL): 125 dB
  • Power Rating (Continuous/Program): 300 / 600/ 1200 watts
  • Nominal Impedance: 8 Ohms
  • Crossover Frequency: 3.2 kHz
  • Drivers: HF: 1×1.5″/SUIM, LF: 1×10″/SUIM
  • Enclosure: 15mm Plywood
  • Appearance Finish: Polyurea Coating
  • Dimensions (W×H×D): 320x345x385mm
  • Package(W×H×D): 370X400X430mm
  • Weight (Kg): 21
  • Technical Data For Amp
  • High-Performance D-Class Amp. Module
  • Switch Mode Power Supply
  • Limiter To Protect Short-Circuit
  • Line Connectors: XLR/Input & Output
  • Output Power: 800W/8 Ohm
  • Frequency Response: +/-0.5dB:20Hz-23KHz
  • Damping Factor: >400
  • Input, impedance: 33K Ohm
  • Input, iSensitivity: 0 dB
  • Rated THD: <0.008%
  • Gain Control: Yes
  • Power Switch: No
  • Operation Voltage: 115V or 230V
