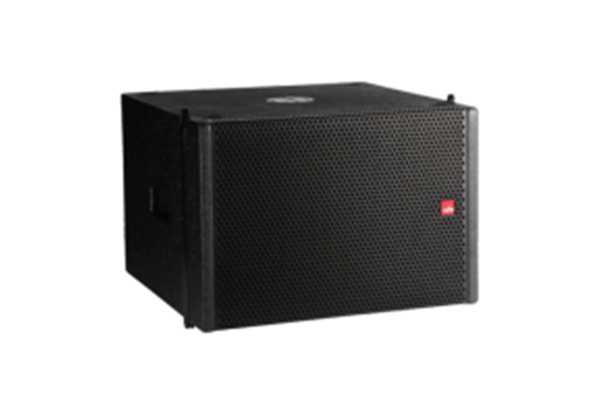

LA18B/LA18BA

• Model: LA18B
• Type: 1×18″,Bass reflex type subwoofer
• Frequency Response (±3dB): 25Hz~450Hz
• Coverage Pattern: Omini (360°)
• Sensitivity (1w/1m) (SPL): 119 dB
• Sensitivity Max. (SPL): 141 dB
• Power Rating (RMS): 1200/2400/4800 Watts
• Nominal Impedance: 8 Ohms
• Input Connectors: 2XNutrik ® Speakon, NL4 , 1+ / 1-
• Drivers: 1×18″ (TC-18/800SW) Woth zebra Conepaper
• Enclosure: 18mm Plywood
• Appearance Finish: Polyurea coating
• Dimensions (W×H×D): 602x602x725mm
• Package(W×H×D): 652x642x760mm/1 PCS / 1CTN
• Weight (Kg): 45

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

• Model: LA18BA
• Type: 1×18″,Bass reflex type subwoofer
• Frequency Response (±3dB): 25Hz~450Hz
• Coverage Pattern: Omini (360°)
• Sensitivity (1w/1m) (SPL): 119 dB
• Sensitivity Max. (SPL): 141 dB
• Power Rating (RMS): 1200/2400/4800 Watts
• Nominal Impedance: 8 Ohms
• Input Connectors: 2XNutrik ® Speakon, NL4 , 1+ / 1-
• Drivers: 1×18″ (TC-18/800SW) Woth zebra Conepaper
• Enclosure: 18mm Plywood
• Appearance Finish: Polyurea coating
• Dimensions (W×H×D): 602x602x725mm
• Package(W×H×D): 652x642x760mm/1 PCS / 1CTN
• Weight (Kg): 45 + Modul Amplifier
• Technical Data For Amp
• High-Performance D-Class Amp. Module
• Switch Mode Power Supply
• Limiter To Protect Short-Circuit
• Line Connectors: XLR/Input & Output
• Output Power: 1200W/16Ohm – 2400W/8 Ohm – 4800W/4Ohm
• Frequency Response: +/-0.5dB:20Hz-32KHz
• Damping Factor: >400
• Input, impedance: 33K Ohm
• Input, iSensitivity: 0 dB
• Rated THD: <0.008%
• Gain Control: Yes
• Power Switch: No
• Operation Voltage: 115V or 230V
