| Features & Application |
| 1. HF compression driver with 1.75″ Voice Coil / 1.5″ Horn throat. |
| 2. LF driver with 12″ (400 watt/RMS) / Zebra conepaper. |
| 3. 12″ 2-way fullrange system. (Coaxial type) |
| 4. M8 X 3, screw-nuts for installation or flying. |
| 5. Flange adapter (tube dia. 35mm). |
| 6. Rotatable logo Badge. |
| 7. Water-borne sand texture painting appearance (4 times) |
| 8. Cross-over fixed on terminal board for easy repairing. |
| 9. Compact design. |
| 10. Double carton package. |
| 11. Steel Grill with acoustic foam. |
| 12. Multi-purpose Usage. |
| Specification |
| Type |

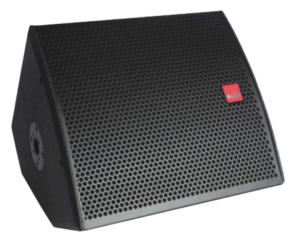

12″ , 2-Way Fullrange, Coaxial, floor monitor type |
| Frequency Range(-10dB) |
45Hz~20kHz |
| Frequency Response(+3dB) |
55Hz~18kHz |
| Coverage pattern |
90°H X 90°V nominal |
| Sensitivity(1W/1m) (SPL) |
101 dB |
| Sensitivity Max.(SPL) |
129 dB |
| Power Rating (Continous/Program/Peak) |
400/ 800/ 1600 watts |
| Nominal Impedance |
8 Ohms |
| Input Connectors |
2XNutik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
| Crossover Mode |
Passive |
| Crossover Frequency |
2000 kHz |
| Drivers |
Coaxial type: CX-12/400 / SUIM X 1 |
| Enclosure |
15mm Plywood |
| Appearance Finish |
Water-borne (Green Eco), Sand texture painting (4 times) |
| Dimensions (W×H×D) |
430X480X375mm |
| Package(W×H×D): |
480X525X420mm |
| Q’ty for package |
1 PCS / 1 CTN, Inner and outer carton, double package. |
| Weight (Kg) |
19/20kg |
| Suspensive/Mounting |
35mm tube socket, M8 X 3 Screw nuts for U-Bracket or wire flying. |
| Technical Data for Amp. Module LH12A |
| Output Power |
500W RMS |
| Input Type |
Balanced differential |
| Input Impedance |
20K Ohms |
| Rated THD |
<0.03% |
| Line Connectors |
Line: XLR |
| Output Connectors |
Line Loop Thru: XLR / Male |
| Operation Voltage |
~100-120v or ~220-240v |
