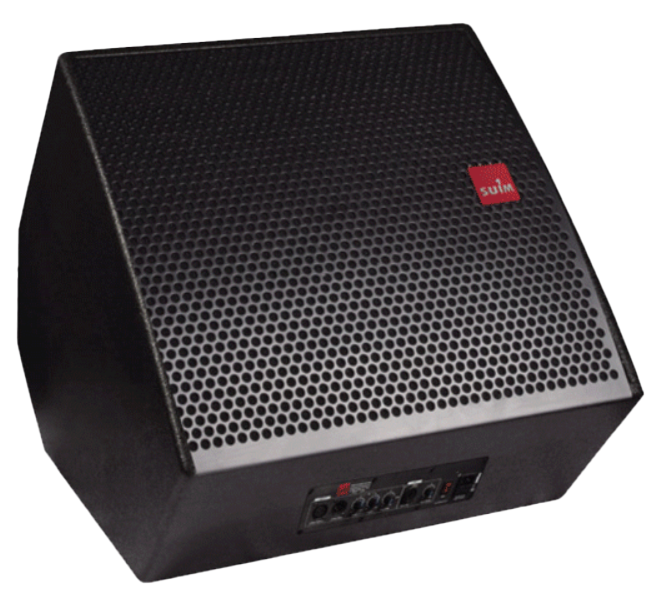

LM-12 Active

Description

  • Model: LM-12 Active
  • Type: 12″, 2-way Fullrange, Coaxial, floor monitor
  • Frequency Range (±10dB): 20Hz~22kHz
  • Frequency Response (±3dB): 30Hz~20kHz
  • Coverage Pattern: 90°H X 90°V nominal
  • Sensitivity (1w/1m) (SPL): 119 dB
  • Max. Sensitivity (SPL): 131 dB
  • Rated Power (RMS): 400/800/1600 watts
  • Nominal Impedance: 8 Ohm
  • Input Connectors: 2XSpeakon, NL4, 1+/1- (Linked from Input to Output)
  • Crossover Mode: Passive
  • Crossover Frequency: 2000 Khz
  • Drivers: HF: 1X1″ / SUIM, LF: 1X12″ / SUIM
  • Enclosure: Plywood 15mm
  • External finish: Water-based paint (Green Eco), Sand texture paint (4 times)
  • Dimensions (WxHxD): 450 x 370 x 410 mm
    Power circuit specifications
  • Power circuit type: Class D
  • Power (8 ohm): 150W + 2200W
  • Power (4 ohm): 300W + 4800W
  • Power supply: 100-240V
  • THD+N/W/1KHz: <1%
  • Frequency response: 20Hz – 33Khz
  • Input connection (Input): 1xXLR Male, 1xXLR female, XLR Female USB port,Volume Preset knob
  • Output connection (Output): 2x Cable
  • Power input: Powercon, Switch
  • DSP circuit: 2xInput, 2xOutput, 48KHz sampling, Phase alignment, Phase, 8x PEQ per Input/Output, Q value, delay 200ms, cross over, Limiter feature
  • Weight (Kg): 17.5kg
