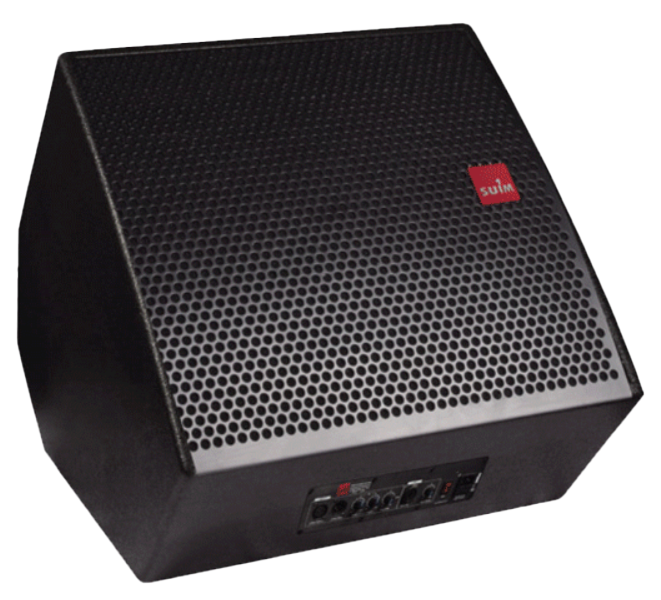

LM-12A

Type: 12″ , 2-Way Fullrange, Coaxial, floor monitor type
Frequency Range (±10dB): 20Hz~22kHz
Frequency Response (±3dB): 30Hz~20kHz
Coverage Pattern: 90°H X 90°V nominal
Sensitivity (1w/1m) (SPL): 119 dB
Sensitivity Max. (SPL): 131 dB
Power Rating (RMS): 400/800/1600 watts
Nominal Impedance: 8 Ohms
Input Connectors: /
Crossover Mode: Active
Crossover Frequency: 2000 Khz
Drivers: HF: 1X1″ / SUIM, LF: 1X12″ / SUIM
Enclosure: 15mm Plywood
Appearance Finish: Water-borne (Green Eco), Sand texture painting (4 times)
Dimensions (W×H×D): 420X400X395mm
Package(W×H×D): 470X440X445mm
Q’ty for package: 1 PCS / 1 CTN, Inner and outer carton, double package.
Weight (Kg): 18.5kg
Suspensive/Mounting: 35mm tube socket, M8X3 Screw nuts for U-Bracket or wire flying
Amplyfier Module
Output Power: 1600W RMS
Input Type: Balanced differential
Input Impedance: 20K Ohms
Rated THD: <0.03%
Line Connectors: Line: XLR
Line Loop Thru: XLR / Male;Mic.input:Combo Jack
Operation Voltage: ~115 or ~230v
