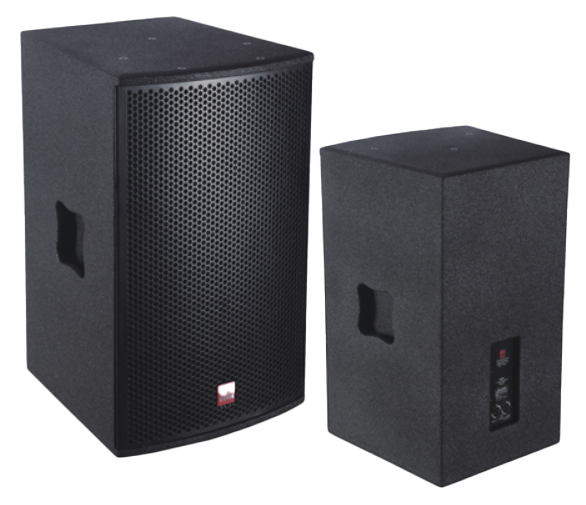

RQS15/RQS15A

Description

  • Model: RQS15
  • Type: 15″ , 2-Way Fullrange
  • Frequency Range (±10dB): 20Hz~22kHz
  • Frequency Response (±3dB): 25Hz~20kHz
  • Coverage Pattern: 60°H X 40°V nominal
  • Sensitivity (1w/1m) (SPL): 119 dB
  • Sensitivity Max. (SPL): 133 dB
  • Power Rating (RMS): 700 / 1400 /2800 watts
  • Nominal Impedance: 8 Ohms
  • Input Connectors: 2XNutrik ® Speakon, NL4 , 1+ / 1-(Linked From input to Ouput)
  • Crossover Mode: Passive
  • Crossover Frequency: 3 Khz
  • Drivers: HF: 1X1″ / LF: 15″
  • Enclosure: 18mm MDF
  • Appearance Finish: Water-borne (Green Eco), Sand texture painting (4 times)
  • Dimensions (W×H×D): 432X700X420mm
  • Package(W×H×D): 485X740X470mm
  • Q’ty for package: 1 PCS / 1 CTN, Inner and outer carton, double package.
  • Weight (Kg): 25kg
  • Suspensive/Mounting: 35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

  • Model: RQS15A
  • Type: 15″ , 2-Way Fullrange
  • Frequency Range (±10dB): 20Hz~22kHz
  • Frequency Response (±3dB): 25Hz~20kHz
  • Coverage Pattern: 60°H X 40°V nominal
  • Sensitivity (1w/1m) (SPL): 119 dB
  • Sensitivity Max. (SPL): 133 dB
  • Power Rating (RMS): 700 / 1400 /2800 watts
  • Nominal Impedance: 8 Ohms
  • Input Connectors: /
  • Crossover Mode: Active
  • Crossover Frequency: 3 Khz
  • Drivers: HF: 1X1″ / LF: 15″
  • Enclosure: 18mm MDF
  • Appearance Finish: Water-borne (Green Eco), Sand texture painting (4 times)
  • Dimensions (W×H×D): 432X700X420mm
  • Package(W×H×D): 485X740X470mm
  • Q’ty for package: 1 PCS / 1 CTN, Inner and outer carton, double package.
  • Weight (Kg): 25kg + Amplyfier Module
  • Suspensive/Mounting: 35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.
  • Technical Data For Amp
  • Limiter To Protect Short-Circuit
  • Line Connectors: XLR/Input & Output
  • Output Power: 800W/16Ohm – 1600W/8 Ohm – 3600W/4Ohm
  • Frequency Response: +/-0.5dB:20Hz-32KHz
  • Damping Factor: >400
  • Input, impedance: 33K Ohm
  • Input, iSensitivity: 0 dB
  • Rated THD: <0.007%
  • Operation Voltage: 115V or 230V
