| Specification |

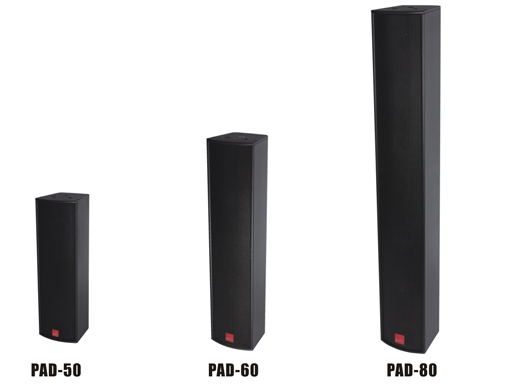

PAD-50 |
PAD-60 |
PAD-80 |
| Type |
4″ 2-way, Mid-Hi range cabinet |
4″ 2-way, Mid-Hi range cabinet |
4″ 2-way, Mid-Hi range cabinet |
| Frequency Response(+3dB) |
80Hz~18kHz |
80Hz~18kHz |
80Hz~18kHz |
| Coverage pattern |
150°Hx45°V nominal |
150°Hx45°V nominal |
150°Hx45°V nominal |
| Sensitivity(1W/1m) (SPL) |
90 dB |
94 dB |
95 dB |
| Sensitivity Max.(SPL) |
118 dB |
126 dB |
128 dB |
| Power Rating (continuous/program/peak) |
100/200/400 watts |
200/400/800 watts |
300/600/1200 watts |
| Nominal Impedance |
8 Ohms |
8 Ohms |
8 Ohms |
| Input Connectors |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
| Crossover Mode |
Passive |
Passive |
Passive |
| Crossover Frequency |
3 kHz |
2.8 kHz |
3 kHz |
| Drivers |
HF: 1″ (CSR-10FD/SUIM)x1, LF: 4″ (TC-5/40ND/SUIM)x2 |
HF: 1″ (CSR-10FD/SUIM)x1, LF: 4″ (TC-5/40ND/SUIM)x4 |
HF: 1″ (CSR-10FD/SUIM)x1, LF: 4″ (TC-5/40ND/SUIM)x6 |
| Enclosure |
Aluminum |
Aluminum |
Aluminum |
| Appearance Finish |
Water-borne (Green Eco), Sand texture painting (4 times) |
Water-borne (Green Eco), Sand texture painting (4 times) |
Water-borne (Green Eco), Sand texture painting (4 times) |
| Dimensions |
128x400x125mm |
128x540x125mm |
128x810x125mm |
| Package(W×H×D): |
150x510x290mm/2PCS |
150x650x290mm/2PCS |
150x910x290mm/2PCS |
| Weight (Kg) |
3.5 |
4.5 |
6 |
| Suspensive/Mounting |
φ25mm tube holder for standing |
φ25mm tube holder for standing |
φ25mm tube holder for standing |
