| Specification |

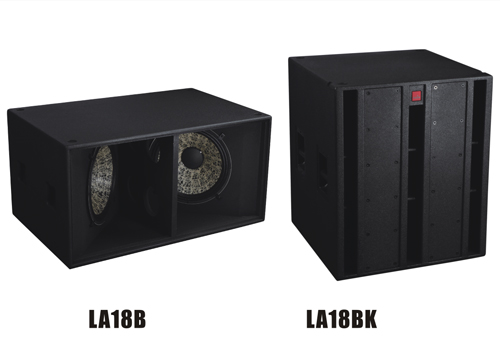

LA18B |
LA18BK |
| Type |
2×18″ Bass reflex,sub-woofer |
2×18″ Semi Band-pass,sub-woofer |
| Frequency Range(-10dB) |
40Hz~290Hz |
35Hz~280Hz |
| Frequency Response(+3dB) |
45Hz~280Hz |
40Hz~270Hz |
| Coverage pattern |
Omni |
Omni |
| Sensitivity(1W/1m) (SPL) |
101 dB |
103 dB |
| Sensitivity Max.(SPL) |
134 dB |
137 dB |
| Power Rating (Continous/Program/Peak) |
1200/2400/4800 watts |
1600/3200/6400 watts |
| Nominal Impedance |
4 Ohms |
4 Ohms |
| Input Connectors |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
| Crossover Mode |
Active |
Active |
| Crossover Frequency |
Adjustable with speaker controller |
Adjustable with speaker controller |
| Drivers |
2×18″ (HQ18S/SUIM),with Zebra Conepaper |
2×18″ (HQ18S/SUIM),with Zebra Conepaper |
| Enclosure |
18mm Plywood |
18mm Plywood |
| Appearance Finish |
Water-borne (Green Eco), Sand texture painting (4 times) |
Water-borne (Green Eco), Sand texture painting (4 times) |
| Dimensions (W×H×D) |
1170X610X760 |
820X860X725 |
| Package(W×H×D): |
1230X645X810 |
875X905X775 |
| Q’ty for package |
1 PCS / 1 CTN |
1 PCS / 1 CTN |
| Weight (Kg) |
80Kg |
85Kg |
