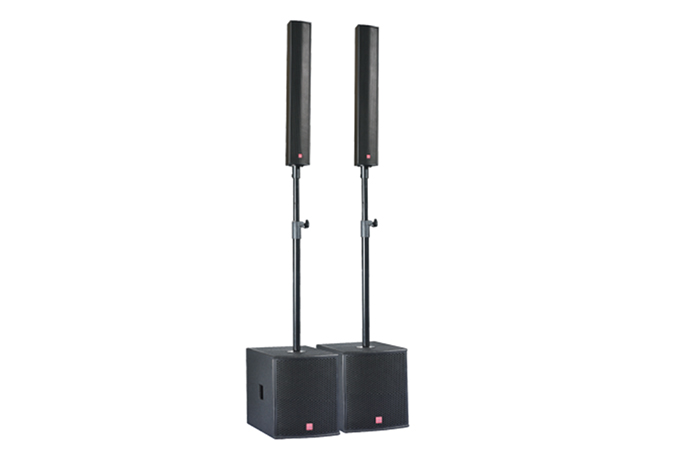

DIVA-K5 TOP/SUB
Description
Technical data
|
Specification |
DIVA-K5 TOP |
DIVA-K5 SUB |
|
Type |
Type: 4″x4 pcs, 2 way mid-high, Cabinet |
Type: 12″,Bass reflex type subwoofer |
|
Frequency Response(+3dB) |
40Hz~22kHz |
40Hz~400Hz (Adjustable function) |
|
Coverage pattern |
120°H X90°V nominal |
360° |
|
Sensitivity(1W/1m) (SPL) |
119 dB |
112 dB |
|
Sensitivity Max.(SPL) |
129dB |
131dB |
|
Power Rating |
350/700/1400 watts |
700/1400 watts |
|
Nominal Impedance |
8 Ohms |
8 Ohms |
|
Input Connectors |
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output) |
2 x XLR Connector |
|
Crossover Mode |
Passive |
Active |
|
Crossover Frequency |
3 kHz |
/ |
|
Drivers |
HF: 1″(CSR-10FD/SUIM)x1 |
HF: 12″TC-12/400SW(3″ Voice Coil 400W: SUIM) x1 |
|
Enclosure |
Aluminum |
Multi Plywood |
|
Appearance Finish |
Water-borne (Green Eco), Sand texture painting (4 times) |
Polyurea Painted |
|
Dimensions (W×H×D) |
128x810x125mm |
390x465x580mm |
|
Package(W×H×D): |
170x930x300mm/2 PCS |
435x500x635mm |
|
Weight (Kg) |
5.5 |
32kg |
|
Suspensive/Mounting |
φ25mm tube holder for standing. |
|
