| Specification |

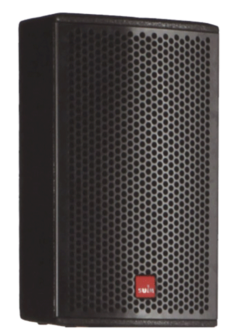

EX80 TOP |
| Type |
8″, 2-Way Mid-High range cabinet |
| Frequency response(±3dB) |
75Hz~17kHz |
| Coverage pattern |
60°H x 40°V nominal |
| Sensitivity (1w/1m) (SPL) |
97 dB |
| Sensitivity Max. (SPL) |
117 dB |
| Power Rating (RMS) |
100 watts |
| Nominal Impedance |
8 Ohms |
| Input Connectors |
1xNutrik Speakon, NL4, 1+/1- |
| Crossover Frequency |
2.7kHz |
| Drivers |
HF: 1″x1; LF: 8″x1 |
| Enclosure |
15mm Plywood |
| Grill |
Steel grill with acoustic foam |
| Appearance Finish |
Water-borne(Green Eco), Sand texture painting |
| Dimensions (WxHxD) |
260x455x245mm |
| Package (WxHxD) |
560x495x315mm |
| Q”ty for package |
2pcs/1 CTN, inner and outer carton, double package |
| Weight (Kg) |
8 kg |
| Specification |
EX15 SUB |
| Type |
15″ Bass reflex type subwoofer |
| Frequency response(±3dB) |
40Hz~250Hz |
| Sensitivity (1w/1m) (SPL) |
101dB |
| Sensitivity Max. (SPL) |
127dB |
| Nominal Impedance |
8 Ohms |
| Drivers |
15″ (3″ Voice Coil 500watts) x1 |
| Enclosure |
15mm Plywood |
| Grill |
Steel grill with acoutstic foam |
| Appearance Finish |
Water-borne(Green Eco), Sand texture painting |
| Dimensions (WxHxD) |
420x540x595mm |
| Package (WxHxD) |
465x580x645mm |
| Q”ty for package |
1pcs/1CTN, inner and outer, double package |
| Weight (Kg) |
39 kg |
| Technical Data for Amp. Module |
|
| Mode Type |
Bi-Amp System |
| Output Power/Subwoofer |
600W RMS |
| Output Power/Mid-Hi (Top) |
200W RMSx2 |
| Input Impedance |
33k Ohms |
| Gain Controls |
Line: 0dBV |
| OPeration Voltage |
115Volt.or 230Volt. |
